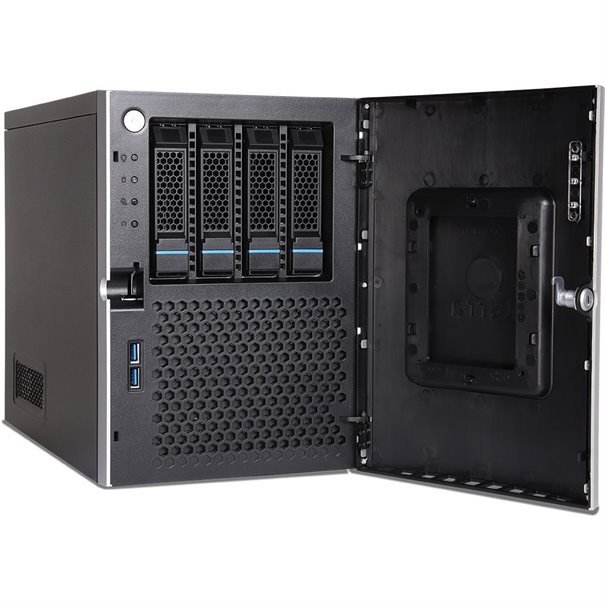

Towerserver mini G5, Xeon E-2324G, 32GB ECC RAM, 2*960GB SATA SSD RAID1, 4*3.5"/2.5" bays, 2*1 GbE (RJ-45), 450W PSU, Windows Server 2025 Standard
Hind ei sisalda käibemaksu.
Toode on tellitav.
Tehnilised andmed
Mini seeria serverid pakuvad hea hinna/kvaliteedi suhtega väiksemõõdulisi servereid.
Soket 1200
Kuni 64GB DDR4 UB ECC mälu
PCIe 4.0
Kaughalduse moodul
TPM moodul
Müratase võrreldav lauaarvuti omaga
| Processor | |
| L3 cache | 8 MB |
| Processor family | 1-CPU / Xeon UP |
| Processor cores | 4-Core |
| Processor frequency | 3.1 GHz |
| Number of processors | 1 |
| Maximum number of SMP processors | 1 |
| Processor socket | LGA1200 |
| Motherboard chipset | Intel C252 |
| General | |
| Processor model | Intel Xeon E-2324G / 3.1 GHz |
| Operating system | Windows Server 2025 Standard |
| Performance | |
| Series | MINISERVER |
| Compatible operating systems | Windows Server 2025 Windows Server 2022 Windows Server 2019 |
| Channels quantity | 6 (4x via mini-SAS HD port) 1x M.2 SATA/NVMe (2280) |
| Memory | |
| Internal memory | 32 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR4 UDIMM with ECC |
| Memory slots | 2x DDR4 PC3200/2933/2666, UB ECC |
| Memory channels | Dual-Channel-Memory-Architecture |
| Storage | |
| Optical drive type | Optional via USB (external) |
| RAID levels | RAID 1 |
| Number of storage drives installed | 2 pc(s) |
| Internal drive bays | 4x 3.5"/2.5" 2x 2.5" |
| Total storage capacity | 1920 GB |
| SSD interface | SATA 6Gb/s |
| HDD capacity | 2x 960 GB SSD |
| Storage media type | SSD SATA |
| Design | |
| Certification | CE, production according to ISO9001 in Germany |
| Rack mounting | tower |
| Chassis type | Pedestal / Mini Tower |
| Power | |
| Number of redundant power supplies supported | 1 |
| Number of redundant power supplies installed | 1 |
| Power source | Power supply |
| Redundant power supply (RPS) support | No |
| Maximum input power | 450 W |
| Number of power supply units | 1 pc(s) |
| AC adapter input voltage | 100-240 V~ (Auto Full Range), 6-3 A, 50-60 Hz |
| Mouse | |
| Mouse included | Optional |
| Keyboard | |
| Keyboard form factor | Optional |
| Network | |
| Ethernet LAN | Integrated |
| LAN controller | 2x Intel I210 |
| Cabling technology | 2x 1 GbE (RJ45) |
| Other features | |
| Number of drive bays | 1x PCIe 4.0 x16 |
| Interface | 1x VGA (functional only with ASMB10-iKVM module) 2x LAN (RJ-45) 1x Mgmt LAN 6x USB 3.2 Gen1 (2x front) option: 1x serial |
| Motherboard manufacturer | Asus P12R-I |
| Remote administration | Yes |
| Hard disk controller | onboard-controller |
| Technical details | |
| Localization | International |
| Weight & dimensions | |
| Height | 27 cm |
| Width | 20 cm |
| Depth | 34 cm |
| Weight | 8 kg |
| Cooling | |
| Cooling type | Active |
| Graphics | |
| Graphics adapter ports | VGA |
| Maximum graphics adapter memory | 64 MB |
| Graphics card | Aspeed AST2600 |
| Operational conditions | |
| Operating temperature (T-T) | 10 °C - 35 °C (recommendation: 20 °C - 22 °C) |
| Recommended humidity operating range | 10-75% (non-condensing) |
