| Operating temperature: | -10˚C ~ +50˚C |
| Storage temperature: | -30˚C ~ +70˚C |
| Additional information: | Soft start function We recommend choosing a battery above 30AH Additional fuses included |
| Comments: | Do not cover the ventilation holes of the device Remember to connect the wires correctly and to polarize the supply voltage! The power consumption cannot exceed the maximum power of the converter |
| Dimensions (D/L x W x H): | 135 x 270 x 73mm |

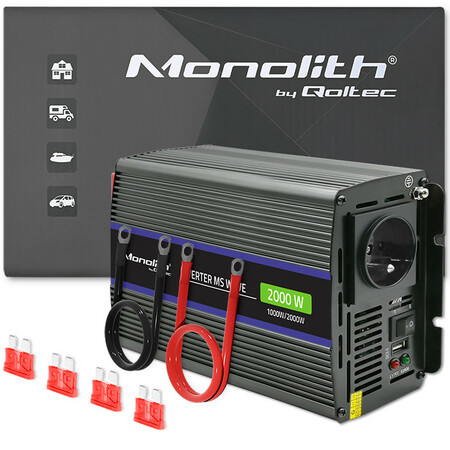

| Kit contents: | 1 x Voltage converter 2 x Battery connection cable 4 x Fuse 1 x User manual 1 x Warranty card |
| Depth / Length of package [mm]: | 180 |
| Package width [mm]: | 350 |
| Package height [mm]: | 85 |
| Net weight [kg]: | 1.572 |
| Gross weight [kg]: | 2.021 |
| Certificate: | CE |
| Material: | Aluminum |
| Application: | Computer, monitor, office equipment, RTV equipment, game console, audio/video equipment, servers, monitoring devices, lighting, small household appliances, charging mobile devices |
| Rated power: | 1000W |
| Total power (instantaneous): | 2000W |
| Input voltage: | 12V |
| Output voltage: | 230V |
| Output voltage waveform: | Modified sine wave |
| Output frequency: | 50Hz ± 2HZ |
| No-load current: | ≤0.5A |
| Efficiency: | 90% |
| Cooling: | 1 x Fan |
| USB ports: | 5V/2A (QC3.0 - 18W) |
| Security: | UVP/OVP/OCP/OTP/SCP |
| Reverse polarity protection: | Fuse |
