| General | |

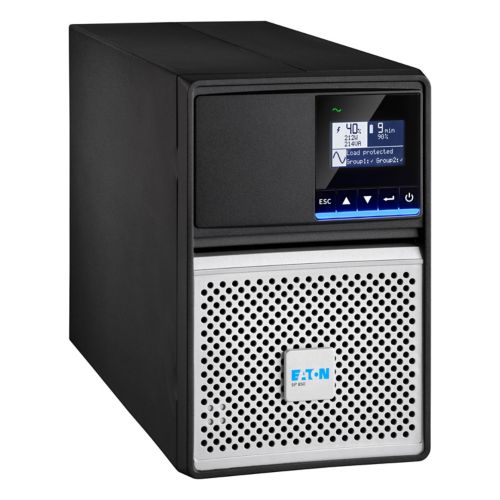

| Device Type: | UPS - external |
| Colour: | Black/silver |
| Power Device | |
| UPS Technology: | Line interactive |
| Input Voltage: | AC 200/208/220/230/240 V |
| Input Voltage Range: | AC 160 - 294 V |
| Input Voltage Range (Adjustable): | AC 150 - 294 V |
| Frequency Provided: | 50/60 Hz |
| Input Wiring: | 1-phase |
| Frequency Required: | 47 - 70 Hz |

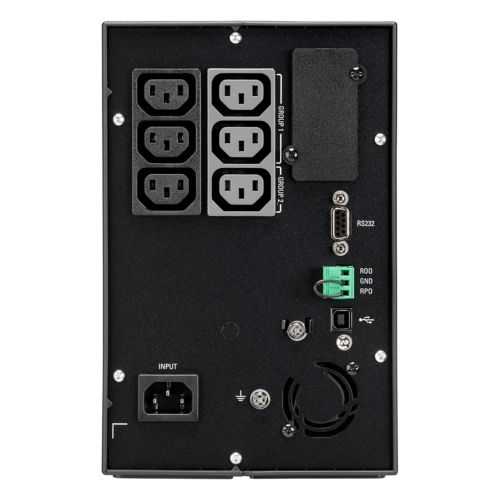

| Input Connectors: | 1 x power IEC 60320 C14 |
| Power Output Connectors Details: | 6 x power IEC 60320 C13 |
| Output Voltage: | AC 200/208/220/230/240 V + 6% / - 10% - 50/60 Hz |
| Power Capacity: | 680 watt / 850 VA |
| Output Waveform: | Sinewave |
| Efficiency: | 98% |
| Power Factor (PF): | 0.8 |
| Battery | |
| Quantity: | 2 |
| Technology: | Lead Acid |
| Voltage Provided: | 12 V |
| Capacity: | 7 Ah |
| Features: | Maintenance free, sealed |
| Networking | |
| Remote Management Interface: | RS-232, USB |
| Expansion / Connectivity | |
| Interfaces: | 1 x EPO (emergency power off) - terminal block 1 x management (USB) 1 x management (RS-232) |
| Expansion Slots: | 1 (total) / 1 (free) x Communication slot |
| Miscellaneous | |
| Cables Included: | USB cable - external 2 x power cable (IEC) - external |
| Features: | Automatic Voltage Regulation (AVR), Advance Battery Management (ABM), LCD display, hot-swappable batteries, remote ON/OFF function, automatic shut down, isolated |
| Compliant Standards: | LVD, EMC, RoHS, WEEE, Packaging Directive, IEC/EN 62040-1, IEC/EN 62040-2, IEC 62040-3, EN 62040-3, UL 1778, CSA 22.2, UKCA, CM, UKR, KCC, cTUVus, BIS |
| Environmental Parameters | |
| Humidity Range Operating: | 0 - 90% (non-condensing) |
| Sound Emission: | 35 dB |
| Dimensions & Weight | |
| Width: | 15 cm |
| Depth: | 34.5 cm |
| Height: | 23.3 cm |
| Weight: | 10.2 kg |
