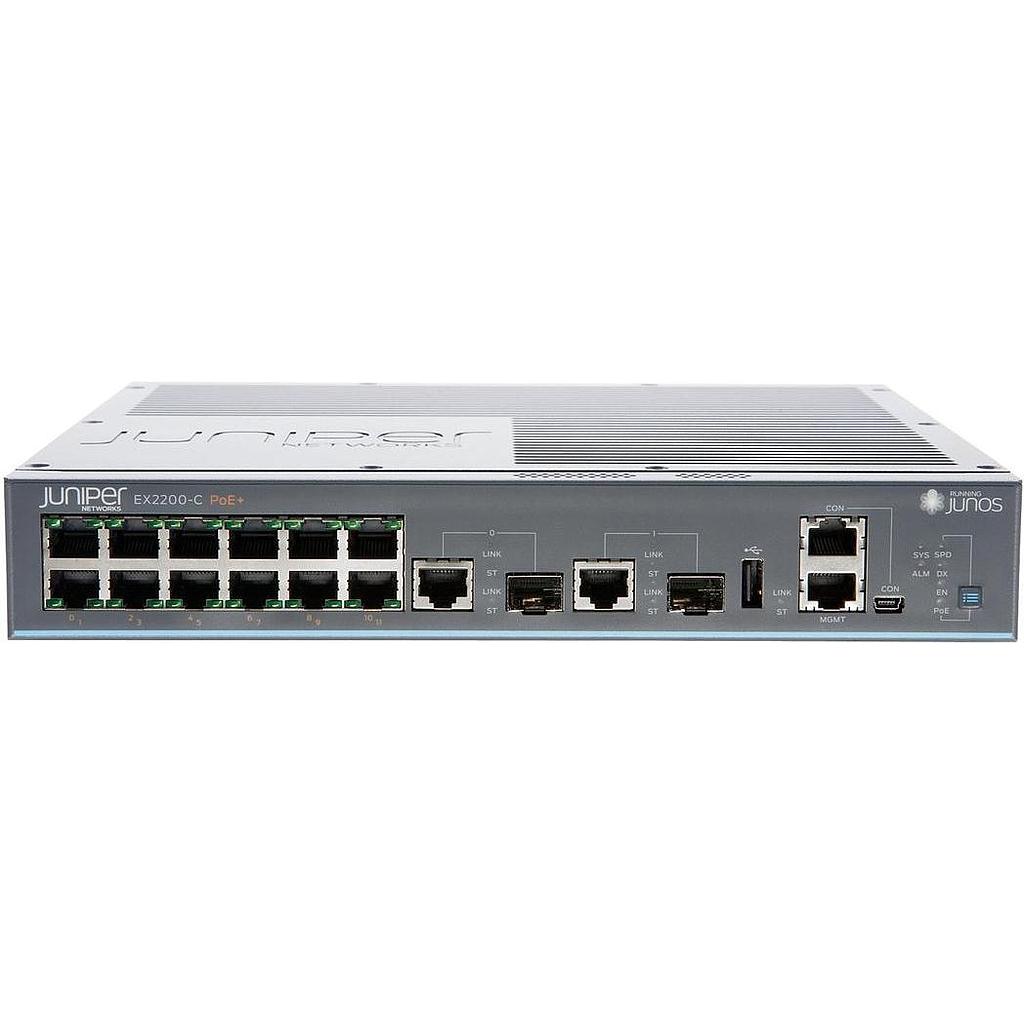

Juniper EX2200-C, 12-port 10/100/1000BaseT PoE+ with 2 dual-purpose 10/100/1000BaseT/SFP uplink ports (optics not included), refurbished
Hind ei sisalda käibemaksu.
Toode on tellitav.
Tehnilised andmed
| Highlights | ||
|---|---|---|
| Number of ports: | 12 | |
| Port speed: | 1G | |
| Port Type: | copper | |
| Uplink Ports (fixed): | 2x 1G SFP/RJ45 Combo | |
| Layer type: | Layer 3 | |
| PoE Ports: | POE | |
| Generally | ||
| Device type: | Switch - managed | |
| Housing type: | 1U | |
| Subtype: | Gigabit Ethernet | |
| Ports: | 12 x 10/100/1000 (PoE) + 2 x Combo Gigabit SFP | |
| Power over Ethernet (PoE): | PoE | |
| Perfomance: | Switching capacity: 28 Gbit/s Throughput: 21 Mpps | |
| Capacity: | Virtual LANs (VLANs): 1024 IGMP snooping entries: 1000 | |
| Size of the MAC address table: | 16,000 entries | |
| Jumbo frame support: | 9216 bytes | |
| Routing Protocol: | OSPF, RIP-1, RIP-2, IGMPv2, IGMP, OSPFv2, IGMPv3 | |
| Remote Administration Log: | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2 | |
| Authentication method: | RADIUS, TACACS+, Extensible Authentication Protocol (EAP) | |
| Features: | Flow control, Power over Ethernet (PoE), BOOTP support, RARP support, ARP support, VLAN support, Auto-Uplink (Auto MDI/MDI-X), IPv6 support, High availability, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Trivial File Transfer Protocol (TFTP) support, Quality of Service (QoS), Time Domain Reflectometry (TDR), PoE+, Per-VLAN Spanning Tree Plus (PVST+), Bidirectional Forwarding Detection (BFD), IPv4 support, LLDP support, Link Aggregation Control Protocol (LACP) | |
| Product certifications: | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3at | |
| Processor: | : 800 MHz | |
| R.A.M: | 512 MB | |
| Flash memory: | 1 GB | |
| Expansion/Connectivity | ||
| Interfaces: | 12 x 1000Base-T RJ-45 PoE 2 x SFP (mini GBIC) | |
| power supply | ||
| Power supply unit: | Internal power supply | |
| Required mains voltage: | Alternating current 120/230 V (50/60 Hz) | |
| Power consumption during operation: | 180 watts | |
| Miscellaneous | ||
| Product certifications: | TUV GS, CISPR 22 Class A, cUL, VCCI Class A ITE, EN55024, EN55022 Class A, ICES-003 Class A, RoHS, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, UL 60950-1 Second Edition, EN 60825-1, CAN/CSA-C22.2 No. 60950-1 | |
| Dimensions and weight | ||
| Width: | 26.9 cm | |
| Depth: | 22.8 cm | |
| Height: | 4.4 cm | |
| Weight: | 2.9 kg | |
| Environmental conditions | ||
| Minimum operating temperature: | 0 °C | |
| Maximum operating temperature: | 40 °C | |
| Permissible humidity level in the workplace: | 10 – 85% (non-condensing) | |
| Minimum storage temperature: | -40 °C | |
| Maximum storage temperature: | 70 °C | |
| Permissible humidity during storage: | 0 - 95% (non-condensing) |
