Tehnilised andmed

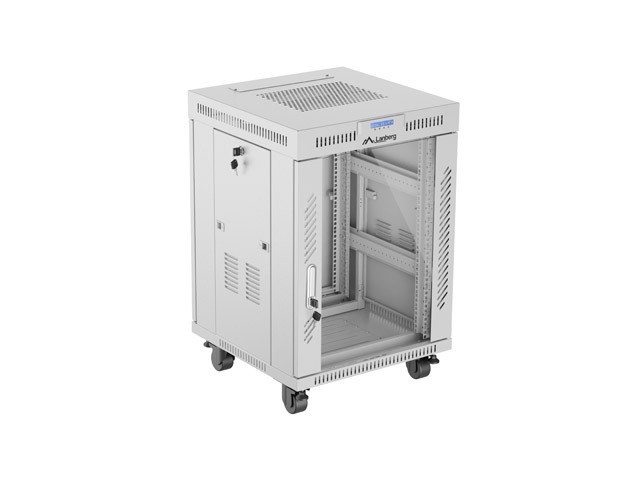

Type of cabinet
Free standing
Size
19"
ICT height
15 U
Assembly type
Self-assembly
Working depth
490 mm

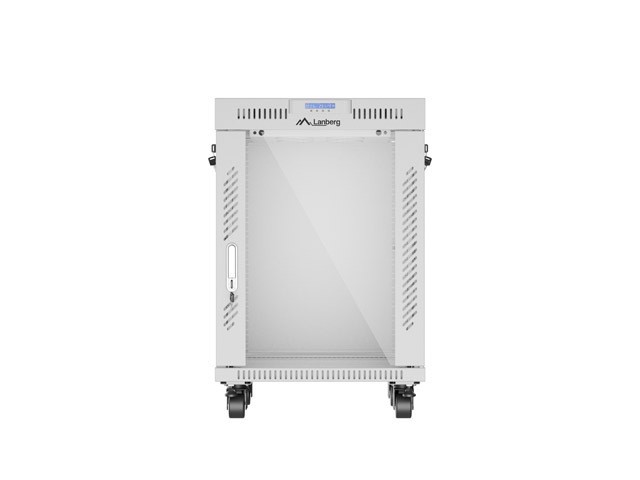

Front door type
Temper glass

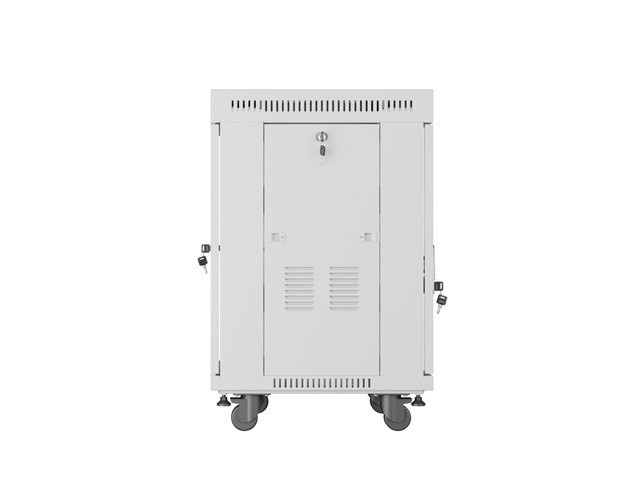

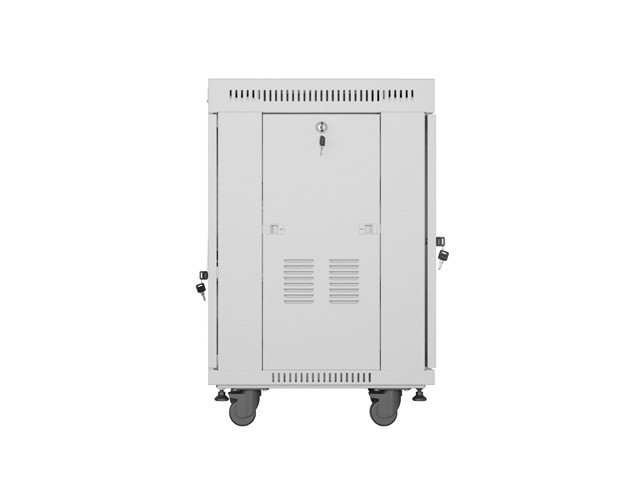

Rear door type
Metal
Door type
Single-leaf
Maximum front door opening angle
180 °
Maximum static load
1200 kg

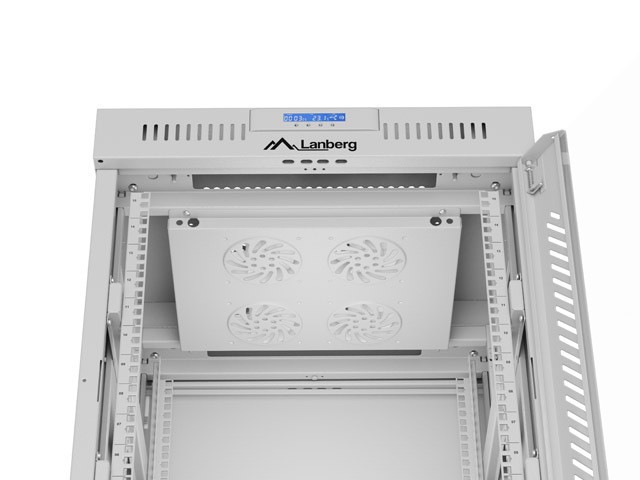

Slot amount for fans
2
Number of vertical rails
4
Thermostat
Yes
LCD panel
Yes
Colour
Gray
RAL color
RAL7035
Weatherproof rating
IP20
Front door thickness
5 mm
Rear door thickness
1 mm

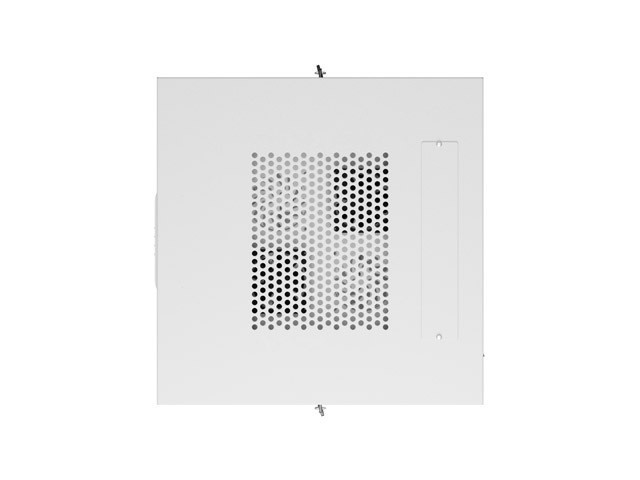

Upper & lower panel thickness
1.5 mm
Side panel thickness
1.2 mm
Mounting rails thickness
2 mm
Frame thickness
1.5 mm
Other elements sheet thickness
1.3 mm
Depth
600 mm
Width
600 mm
Height
922 mm
Height without casters
819 mm
Weight
60 kg
Standard
ANSI/EIA RS-310-D, DIN 41491/PART 1, DIN 41494/PART 7, ETSI, IEC297-2:1982

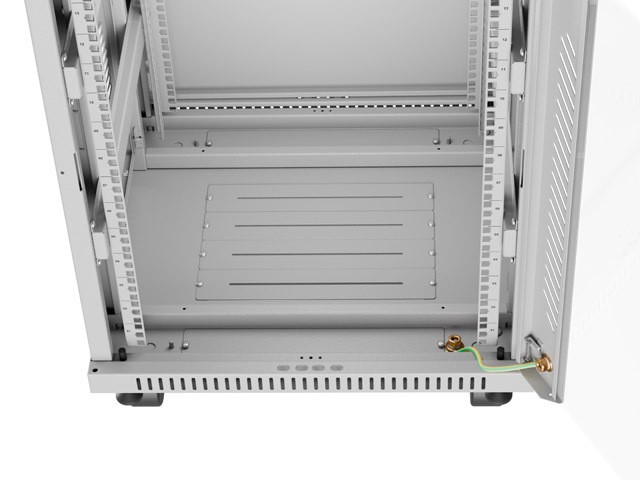

Grounding Details
Back door, Frame, Front door
Included Accessories

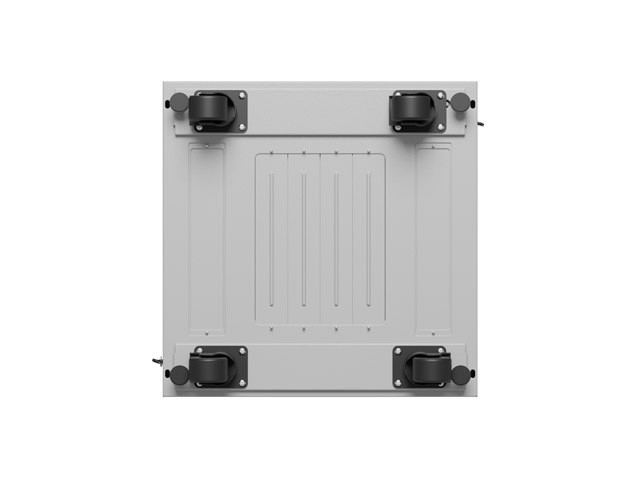

Front lock, Grounding cable, Legs, M6 screws, Rear lock, Side locks, Thermostat, Ventilation panel (2 fans), Wheels with brake
