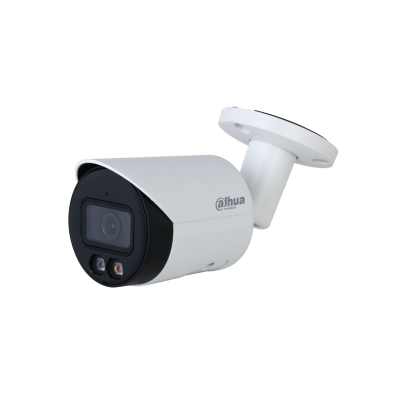

Dahua net camera 4MP bullet
Hind ei sisalda käibemaksu.
Toode on tellitav.
Tehnilised andmed
Design
Form factorBullet
Housing materialMetal
International Protection (IP) codeIP67
Mounting typeCeiling/wall
Product colourWhite
Performance
CertificationCE-LVD: EN 62368-1
CE-EMC: 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
Connectivity technologyWired
Placement supportedIndoor & outdoor
TypeIP security camera
Wide Dynamic Range (WDR)Yes
Camera
Adjustment shutter speedAuto/Manual
Angle of rotation360 °
Camera shutter speed1/3 - 1/100000 s
Minimum illumination0.0008 lx
Pan range0 - 360 °
Tilt angle range0 - 90 °
White balanceAuto/Manual/Natural/Outdoor/Street lamp
Image sensor
Optical sensor size1/2.9 "
Progressive scanYes
Sensor typeCMOS
Lens system
Closest focusing distance0.9 m
Fixed focusYes
Maximum aperture number1.6
Number of lenses2
Night vision
LED typeIR
Night visionYes
Night vision distance30 m
Number of illumination LEDs1
Video
Back Light Compensation (BLC)Yes
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Gain control typeAuto/Manual
Highlight Compensation (HLC)Yes
Maximum resolution2688 x 1520 pixels
Noise reductionYes
Noise reduction technology3D noise reduction
Privacy maskingYes
Region of Interest (ROI) encodingYes
Supported graphics resolutions1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2304 x 1296/2560 x 1440/2688 x 1520/342 x 240/352 x 288/640 x 480 (VGA)/704 x 480/704 x 576
Total megapixels4 MP
Video compression formatsH.264/H.264+/H.264B/H.264H/H.265/H.265+/M-JPEG
Audio
Audio formats supportedG.711 µ-law/G.711 A-law/G.726/PCM
Built-in microphoneYes
Signal-to-Noise Ratio (SNR)56 dB
Network
BluetoothNo
Ethernet interface typeFast Ethernet
Ethernet LANYes
Number of users6 user(s)
Supported network protocolsIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP
Wi-FiNo
Storage
Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Internal memory128 MB
Maximum memory card size256 GB
ROM capacity128 MB
Ports & interfaces
Ethernet LAN (RJ-45) ports1
Security
HTTPS encryptionYes
Intelligent Video Surveillance (IVS) system featuresIntrusion/Tripwire
MirrorYes
Privacy protectionYes
Video motion detectionYes
Management features
Management softwareDSS; DMSS
Web browserYes
Web-based managementYes
Power
Power consumption (max)4.4 W
Power consumption (Power over Ethernet (PoE))2.5 W
Power consumption (typical)2.1 W
Power source typeDC,PoE
Operational conditions
Operating relative humidity (H-H)0 - 95 %
Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
System requirements
Mobile operating systems supportedAndroid/iOS
Weight & dimensions
Depth166.2 mm
Height70 mm
Weight480 g
Width70 mm
Packaging data
Package weight590 g
