  2. Moxa NPort 5130 1-port RS-422/485 device server

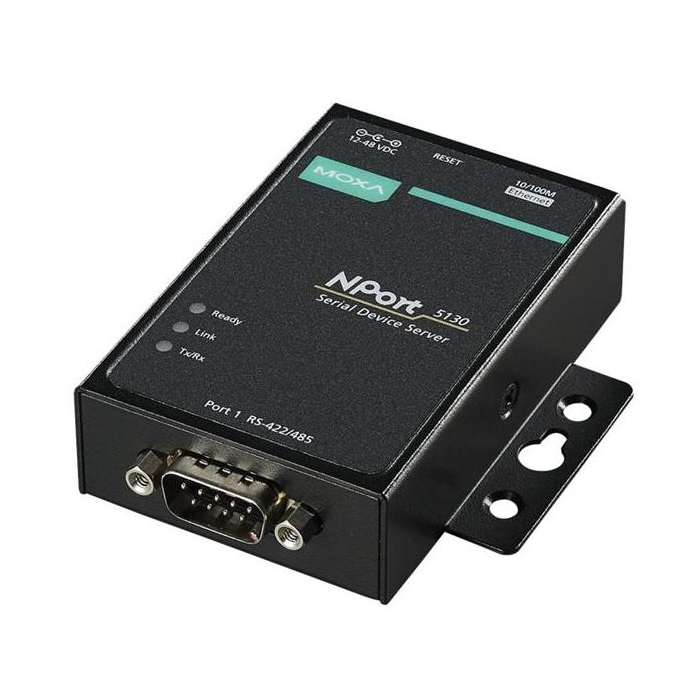

Moxa NPort 5130 1-port RS-422/485 device server

173.57 € 173.57 EUR

173.57 €

Lisa ostukorvi

Hind ei sisalda käibemaksu.
Toode on tellitav.

Tehnilised andmed

Ethernet Interface

  • 10/100BaseT(X) Ports (RJ45 connector)

    • 1

  • Magnetic Isolation Protection

    • 1.5 kV (built-in)
Ethernet Software Features

  • Configuration Options

    • Windows Utility
      Telnet Console
      Web Console (HTTP)

  • Management

    • DHCP Client
      IPv4
      SMTP
      SNMPv1
      Telnet
      DNS
      HTTP
      ARP
      BOOTP
      UDP
      TCP/IP
      ICMP

  • Windows Real COM Drivers

    • Windows 11, 10, 8.1, 8, 7, Vista, XP, ME, 98, and 95
      Windows Server 2022, 2019, 2016, 2012 R2, 2012, 2008 R2, 2008, 2003, 2000, and NT
      Windows Embedded CE 6.0 and 5.0, Windows XP Embedded

  • Linux Real TTY Drivers

    • Kernel versions: 6.x, 5.x, 4.x, 3.x, 2.6.x, and 2.4.x

  • Fixed TTY Drivers

    • macOS versions: 14, 13, 12, 11, and 10.1x
      SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X

  • Arm®-based Platform Support

    • Windows 11
      Linux kernel 6.x, 5.x, and 4.x
      macOS 14, 13, 12, and 11

  • Virtual Machine

    • VMWare ESXi (Windows 11/10)
      VMware Fusion (Windows on macOS 14, 13, 12, 11, and 10.1x)
      Parallels Desktop (Windows on macOS 14, 13, 12, 11, and 10.1x)

  • Android API

    • Android 3.1.x and later

  • MIB

    • RFC1213, RFC1317
Security Functions

  • Authentication

    • Local database (password only)
Serial Interface

  • Connector

    • DB9 male

  • No. of Ports

    • 1

  • Serial Standards

    • RS-422/485

  • Operation Modes

    • Disabled
      Ethernet Modem
      Pair Connection
      Real COM
      Reverse Telnet
      TCP Client
      TCP Server
      UDP

  • Baudrate

    • 50 bps to 921.6 kbps

  • Data Bits

    • 5, 6, 7, 8

  • Stop Bits

    • 1, 1.5, 2

  • Parity

    • None, Even, Odd, Space, Mark

  • Flow Control

    • XON/XOFF

  • Pull High/Low Resistor for RS-485

    • 1 kilo-ohm, 150 kilo-ohms

  • RS-485 Data Direction Control

    • Automatic Data Direction Control (ADDC)
Serial Signals

  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    • Data+, Data-, GND
Power Parameters

  • Input Current

    • 200 mA @ 12 VDC

  • Input Voltage

    • 12 to 48 VDC

  • No. of Power Inputs

    • 1

  • Source of Input Power

    • Power input jack
Physical Characteristics

  • Housing

    • Metal

  • Installation

    • Desktop
      DIN-rail mounting (with optional kit)
      Wall mounting

  • Dimensions (with ears)

    • 75.2 x 80 x 22 mm

  • Dimensions (without ears)

    • 52 x 80 x 22 mm

  • Weight

    • 340 g
Environmental Limits

  • Operating Temperature

    • 0 to 55°C

  • Storage Temperature (package included)

    • -40 to 75°C

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications

  • EMC

    • EN 55032/35

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV
      IEC 61000-4-5 Surge: Power: 1 kV
      IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
      IEC 61000-4-8 PFMF
      IEC 61000-4-11

  • Safety

    • EN 62368-1
      IEC 62368-1
      UL 60950-1
MTBF

  • Time

    • 2,836,863 hrs

  • Standards

    • Telcordia (Bellcore) Standard TR/SR
